WS-C3650-48TQ-S Cisco Catalyst 3650 48 Port Gigabit Lan Switch

Product Categories

SENYDA(HK)Technology Limited

Contact Now

WS-C3650-48TQ-S Cisco Catalyst 3650 48 Port Gigabit Lan Switch

Name: WSC365048TQS Cisco Catalyst 3650 48 Port Gigabit Lan Switch
Brand: CISCO
Price: 2185 USD

Buy cheap WS-C3650-48TQ-S Cisco Catalyst 3650 48 Port Gigabit Lan Switch product

Brand Name : CISCO

Model Number : WS-C3650-48TQ-S

Certification : FCC

Place of Origin : USA

MOQ : 1/unit

Price : $2185/unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50/unit/day

Delivery Time : 3 days

Packaging Details : 58*55*25cm

Product Name : Cisco Catalyst 3650 48 Port Gigabit Lan Switch

Transmission : 10/100/1000Mbps

Switch Type : Gigabit Switchs

Products Status : In Stock

Feature Set : IP Base

Communication : Full-Duplex&Half-Duplex

Warranty : 1 year warranty

Stack bandwidth : 160Gbps

Uplink ports : 4 x10G

Forwarding Performance : 130.95Mpps

Contact Now

WS-C3650-48TQ-S Cisco Catalyst 3650 48 Port Gigabit Lan Switch

Description:Cisco Catalyst WS-C3650-48TQ-S is the next generation of enterprise-level stable access layer switch and integrates with 48 Ethernet ports and 4 x 10G uplink ports in IP Base feature set.

Table 1 shows the Quick Specs.

Product Code	WS-C3650-48TQ-S
Enclosure Type	Rack-mountable - 1U
Feature Set	IP Base
Uplink Interfaces	4 x10G Uplink ports
Ports	48 x 10/100/1000 Ethernet
Maximum stacking number	9
Stack bandwidth	160Gbps
Forwarding Performance	130.95 Mpps
Switching Capacity	392Gbps
RAM	4 GB
Flash Memory	2 GB
Dimensions	4.4 x 44.5 x 44.8 cm
Package Weight	7.21 Kg
AC Power Supply	250 WAC

Figure 2 shows the front panel of WS-C3650-48TQ-S

Note:
①	Mode button	④	USB Type A storage port
②	Status LEDs	⑤	48 x 10/100/1000 Ports POE+
③	USB mini-Type B (console) port	⑥	Uplink ports

Figure 3 shows the back panel of WS-C3650-48TQ-S

Note:
①	Ground connector	④	Fan module
②	CONSOLE (RJ-45 console port)	⑤	Power supply modules slots
③	MGMT (RJ-45 10/100/1000 management port)	⑥	Stacking modules slots

The Cisco Catalyst 3650 supports an optional stacking module that is based on the Cisco StackWise-160 technology which allows stacking up to 9 switches. StackWise-160 creates a highly resilient single unified system of up to 9 switches, providing simplified management with a single IP address.

For stacking purpose, stack module is required and LAN base feature set can only stack with other 3650 series in LAN feature set. LAN base feature supports 255 VLANs in max with inactive Flexible Netflow features and wireless controller functionality. To activate wireless controller and Flexiable Netflow features, update to IP base image is necessary.

Table 2 shows some recommended modules, licenses and accessories of this switch.

C3650-STACK-KIT=	Cisco Catalyst 3650 Stack Module spare
L-C3650-48-L-S	Cisco Catalyst 3650 48-port Switch LAN Base to IP Base Electronic RTU License
L-C3650-48-S-E	Cisco Catalyst 3650 48-port Switch IP Base to IP Services Electronic RTU License
STACK-T2-1M=	Cisco StackWise-160 1M Stacking Cable Spare
STACK-T2-3M=	Cisco StackWise-160 3M Stacking Cable Spare
PWR-C2-640WAC=	640 WAC power supply spare
PWR-C2-1025WAC=	1025 WAC power supply spare

Table 3 shows the comparison between WS-C3650-48TS-S and WS-C3650-48TQ-S

Models	WS-C3650-48TS-L	WS-C3650-48TQ-L
Feature Set	IP Base	IP Base
Uplink Interfaces	4x1G Uplink ports	4x10G Uplink ports
Ports	48 x 10/100/1000 Ethernet	48 x 10/100/1000 Ethernet
StackWise-160	Optional	Optional

WS-C3650-48TQ-S Cisco Catalyst 3650 48 Port Gigabit Lan Switch

Package & Delivery

Selling Units	Single item

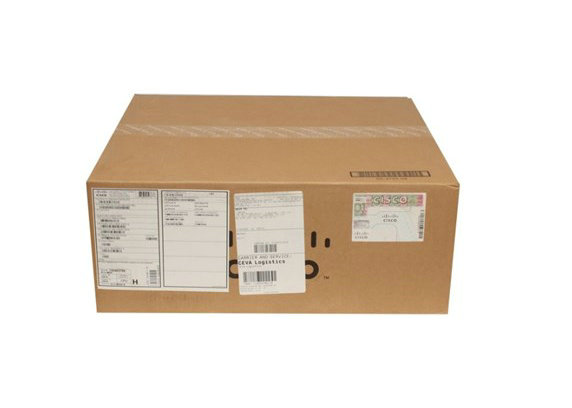

Package Type	CISCO F/S NIB original sealed box inside , and another blank carton box to protect it from broken
Shipment	Ship Via UPS, DHL, EMS, FEDEX, TNT,EMS, POSTAL etc or other options by clients
Lead Time	Fast transportation time within 48 hours after payment confirm
Quantity (Piece)	<30	31 - 100	>100
Est. Time (day)	2	3	To be negotiated

Why Choose US

Warranty	1 Year warranty from professional cisco agents
Service	24 Hours online service
Quality	100% Original Cisco Sealing Products from Cisco Factory
Price	Competitive Price with a big Discount from china mainland
Advantages	Cisco China Agents
	Providing constructive suggestions for solutions and installations.

WS-C3650-48TQ-S Cisco Catalyst 3650 48 Port Gigabit Lan Switch

Product Tags:

10 gigabit ethernet switch

gigabit network switch

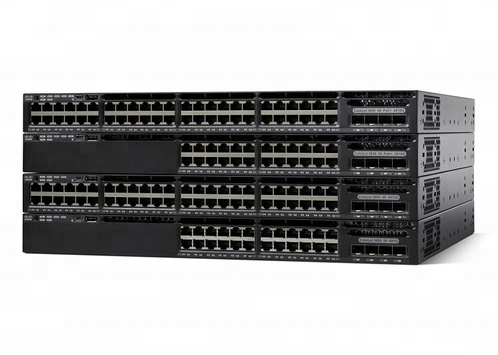

WS-C3650-48TQ-S Cisco Catalyst 3650 48 Port Gigabit Lan Switch Images
